×

This site uses own and third-party cookies to offer a better service. If you continue browsing we will consider you accepting its use.

PropertiesChemical corrosion resistance

Crevice Corrosion Resistance ASTM G48A Method B-Ferric Chloride Crevice Corrosion Test

Stainless Steel

Ceramic Coating

Pitting Corrosion Resistance ASTM G48A Method A-Ferric Chloride Pitting test

10% FeCl3 Stainless Steel Ceramic Coating

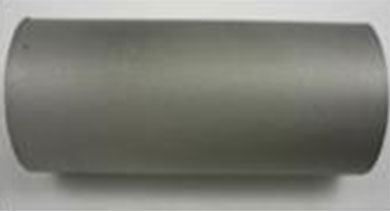

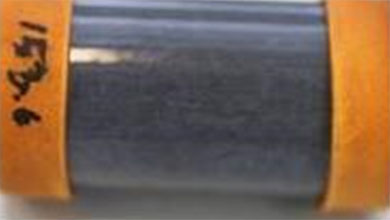

0h (25 ºC)

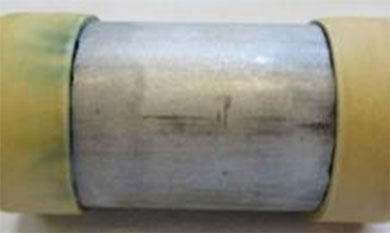

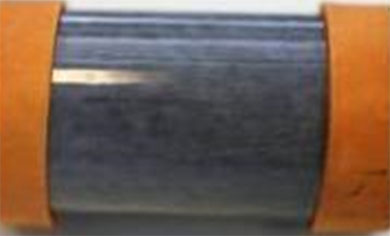

72h (50 ºC)
Weight Loss (g/m2) > 700 ≈ 0

Seawater Corrosion Resistance (Offshore)

Conditions

  • Solution: 3,5% NaCl at 22 ⁰C
  • Visual inspection after test
Seawater Corrosion Test

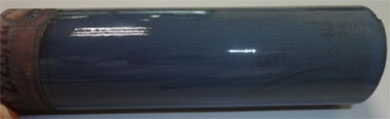

0 h

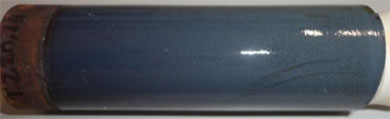

1,000 h

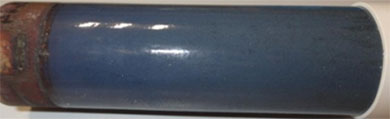

16,000 h & GOING

Molten salt Corrosion Resistance

Conditions

  • Molten salt composition: NaNO3 + KNO3 (60/40)
  • 46 cycles HEATING (8 hours at 400ºC)/Cooling

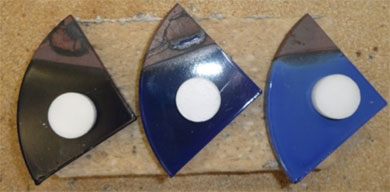

Initial test

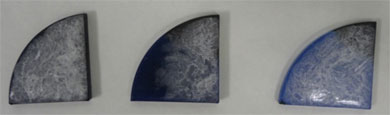

After 46 cycles /
Before cleaning

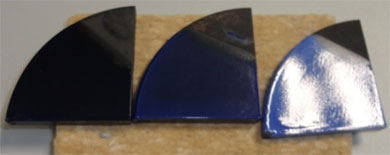

After 46 cycles /
Surface clean
